Mini Modular Dual Vertical System DYCZ-24DN

Short Description:

DYCZ – 24DN is used for protein electrophoresis, which is a delicate, simple and easy to use system. It has the function of “casting gel in original position”. It is manufactured from high transparent poly carbonate with platinum electrodes. Its seamless and injection-molded transparent base prevents leakage and breakage. It can run two gels at once and save buffer solution.DYCZ – 24DN is very safe for user. Its power source will be switched off when user opens the lid. This special lid design avoids making mistakes.


Product Detail

Product Tags

ual Vertical System DYCZ – 24DN (2)

Description

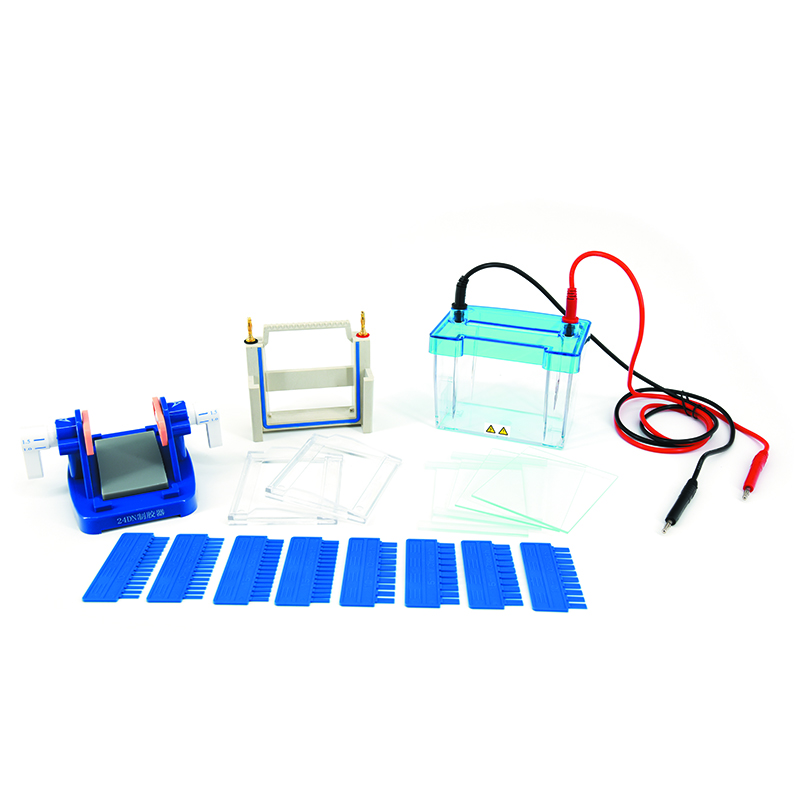

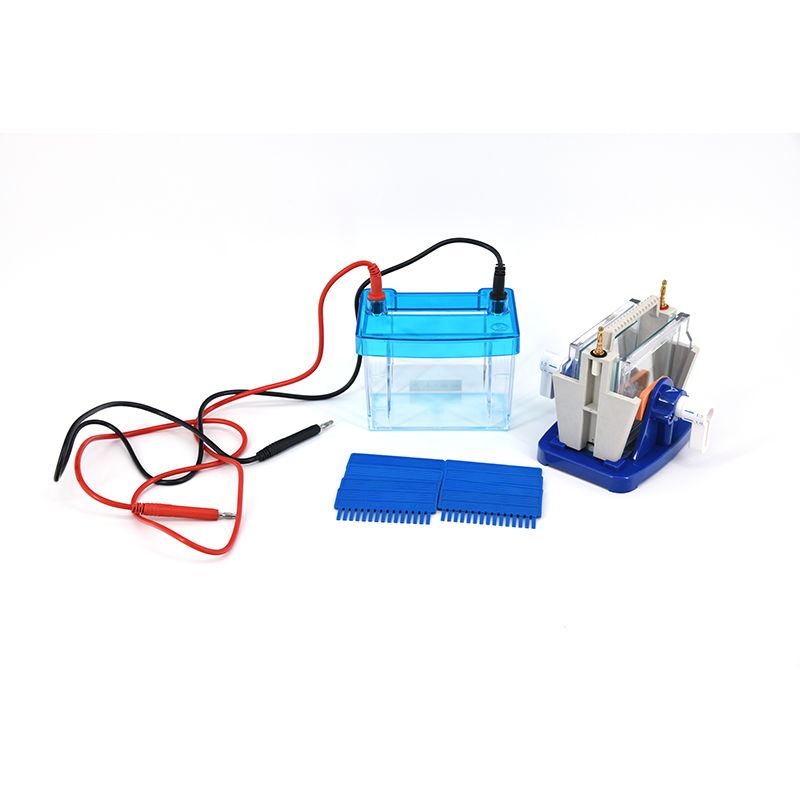

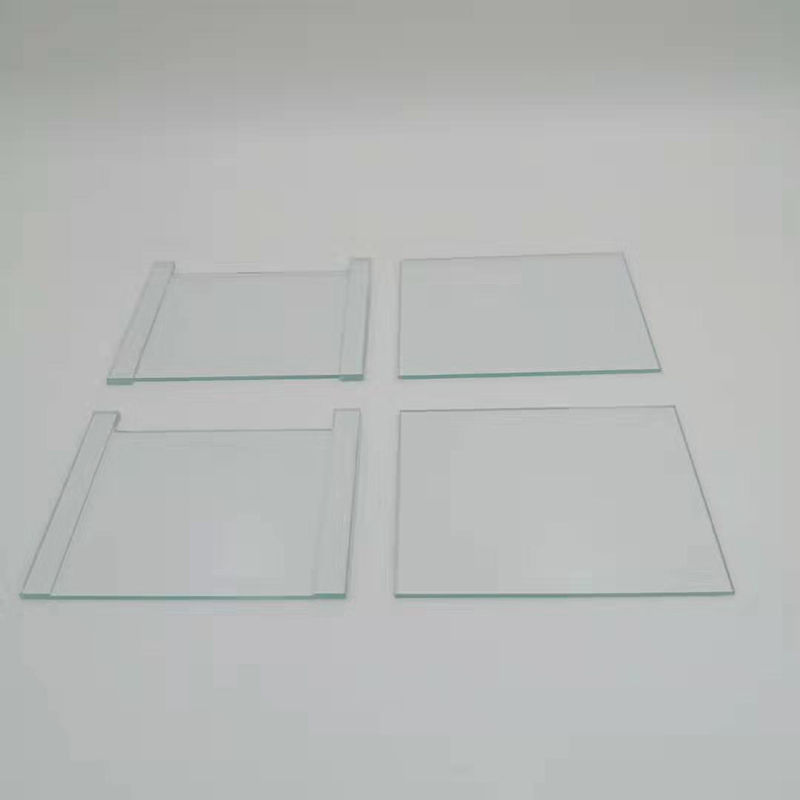

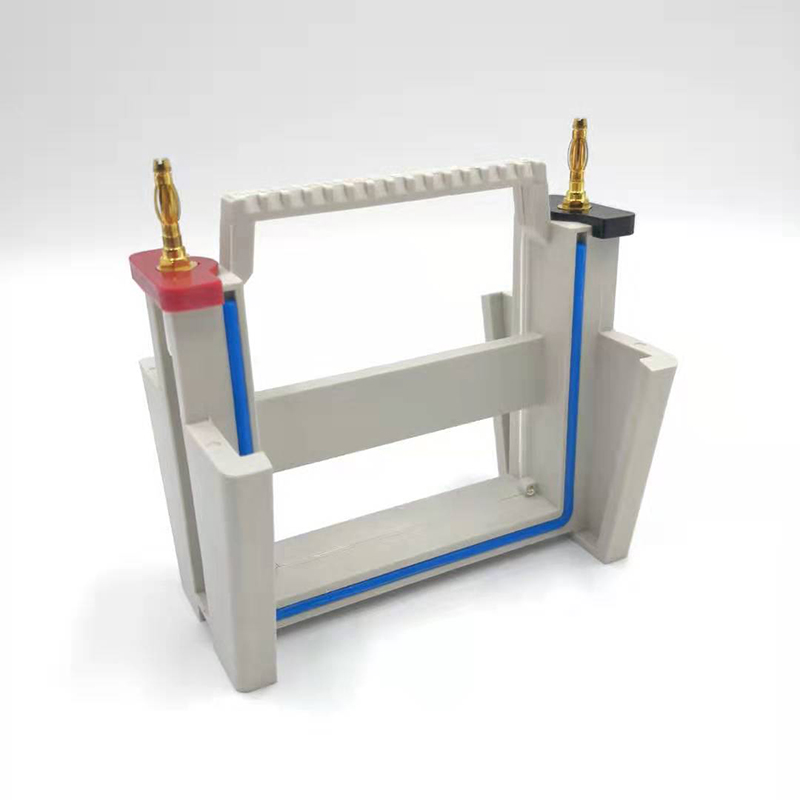

DYCZ-24DN consists of main tank body (gel casting stand), lid with leads, external tank (buffer tank) and gel casting device. It is manufactured from high transparent poly carbonate with platinum electrodes. The electrodes are made by pure platinum(the purity quotient of the noble metal ≥99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature. The electrode is removable, and it is easy for clean and maintenance. The special wedge frame can fix the gel rooms in the casting stand firmly. Its seamless and injection-molded transparent base prevents leakage and breakage. It can run two gels at once and save buffer solution. DYCZ-24DN’s comb thickness is 1.0mm and 1.5mm, and it also has optional comb (0.75mm) and notched glass plate sticked with regula (0.75 mm).

Specification

Dimension (LxWxH)

140×100×150mm

Gel Size (LxW)

75×83mm

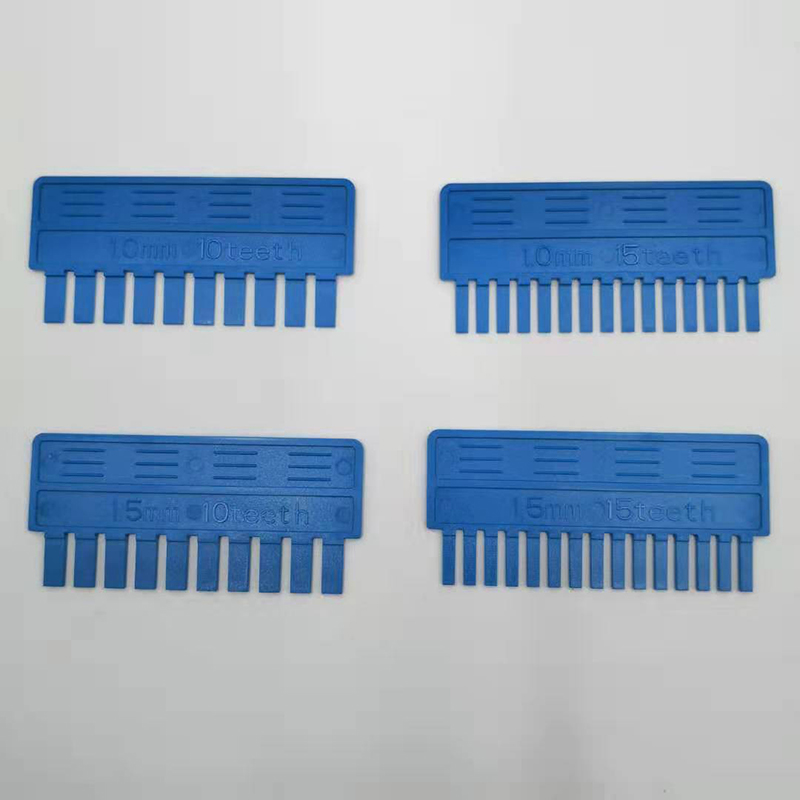

Comb

10 wells and 15 wells

Comb Thickness

1.0mm and 1.5mm(Standard)

0.75mm (Optional)

Number of Samples

20-30

Buffer Volume

400 ml

Weight

1.0kg

ual Vertical System DYCZ – 24DN (3)
ual Vertical System DYCZ – 24DN (4)
ual Vertical System DYCZ – 24DN (5)
ual Vertical System DYCZ – 24DN (6)
ual Vertical System DYCZ – 24DN (7)

Feature

• Made of high quality transparent polycarbonate, exquisite and durable, easy for observation;

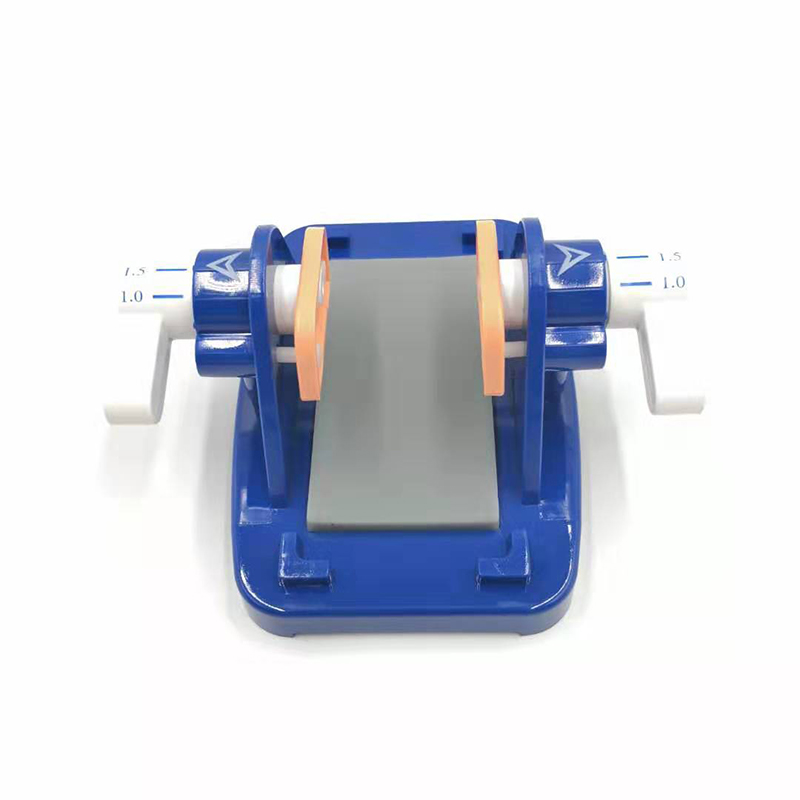

• With a gel casting in original position, able to cast and run the gel at the same place, simple and convenient to make gels, and save your precious time;

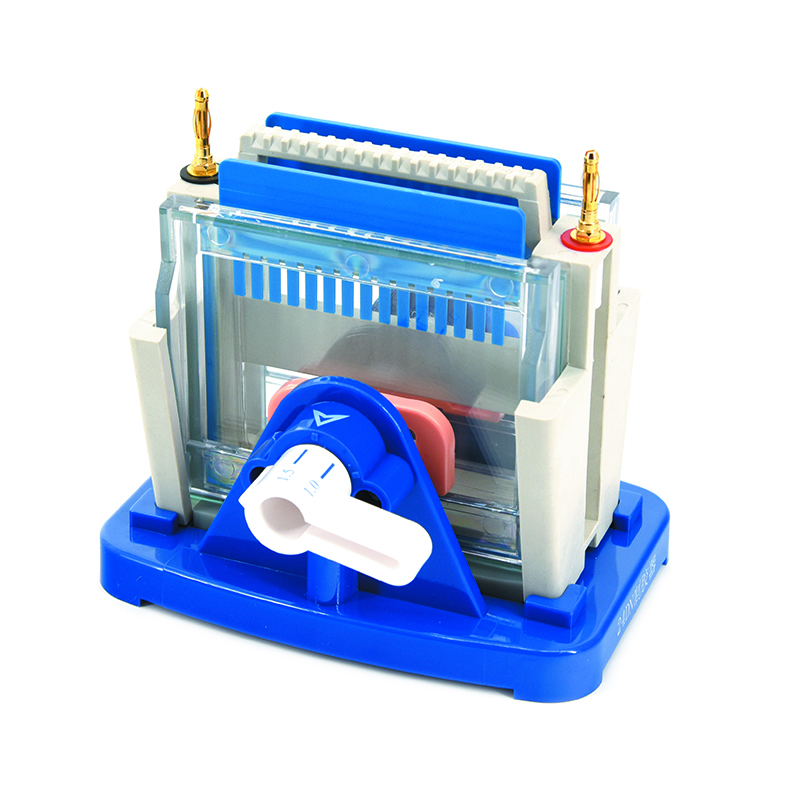

• Special wedge frame design can fix gel room firmly;

• Molded buffer tank equipped pure platinum electrodes;

• Easy and convenient to add samples;

• Able to run one gel or two gels at the same time;

• Save buffer solution;

• Special design of the tank avoid buffer and gel leakage;

• Removable electrodes, easy to maintain and clean;

• Auto-switch-off when the lid is opened;

ual Vertical System DYCZ – 24DN (8)
ual Vertical System DYCZ – 24DN (9)
ual Vertical System DYCZ – 24DN (1)
