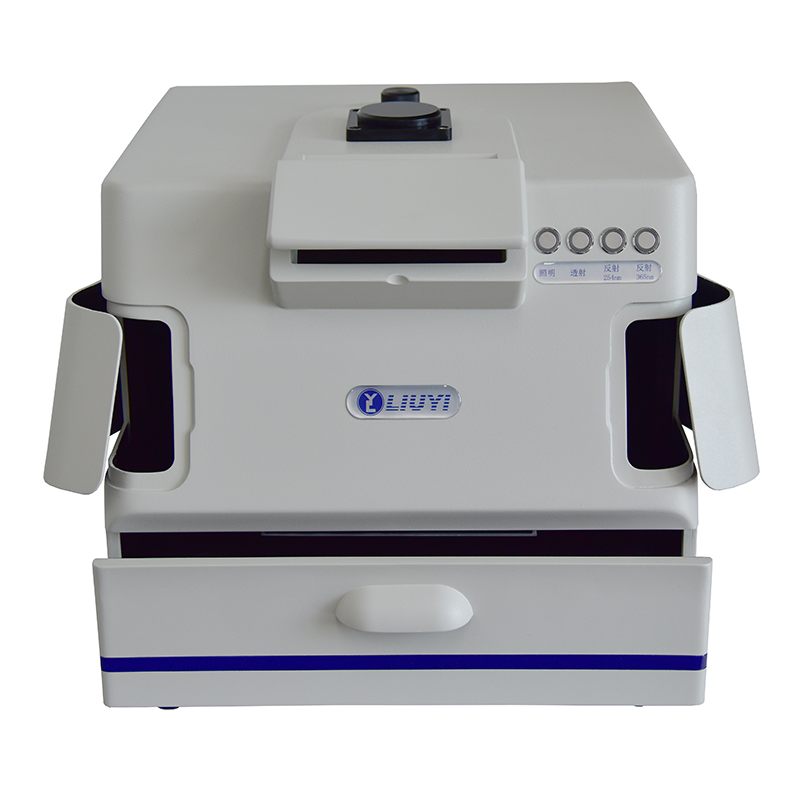

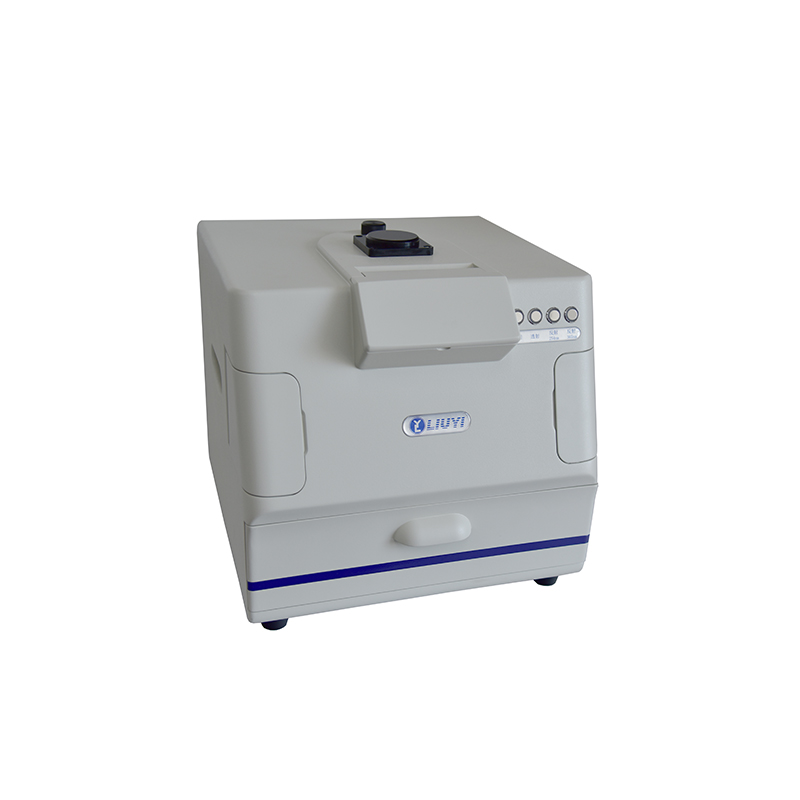

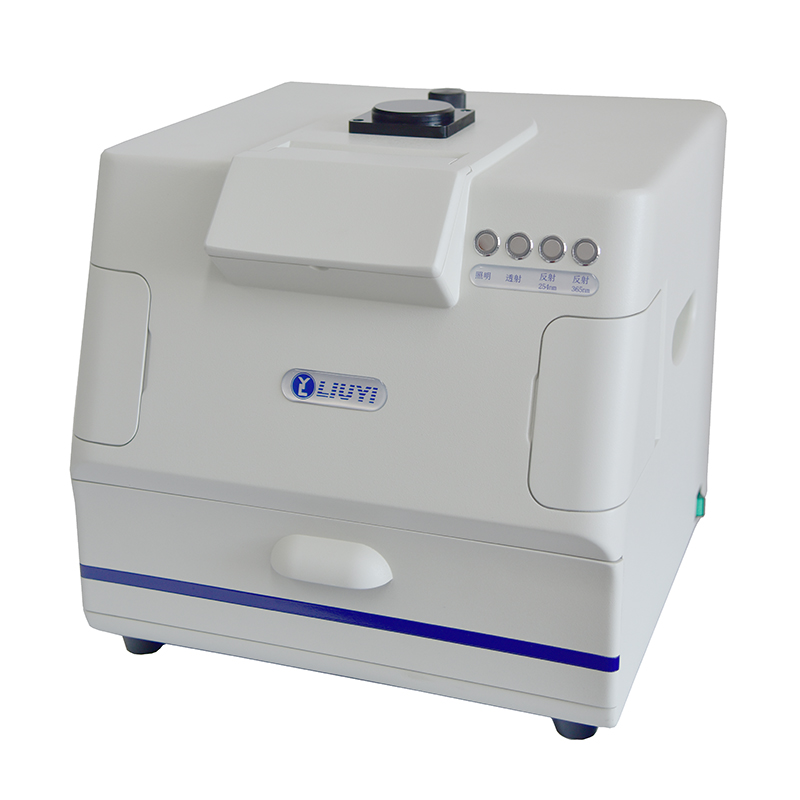

UV Transilluminator WD-9403F
Specification
| Dimension | 425×430×380mm |
| Transmission UV Wavelength | 302 |
| Reflection UV Wavelength | 254nm and 365nm |
| Transmission Area | 200×200mm |
| Visible Light Transmission Area | 200×200mm |
| UV Lamp Power | 8W for 302nm lamp 6W for 254nm and 365nm lamp |
| Weight | 20.00kg |
Application
For observing and taking the pictures of the protein and nucleic acid electrophoresis results.
Description
The WD-9403F UV Viewing Cabinet is designed to observe and take pictures for fluorescence and colorimetric imaging applications, such as the image for gel electrophoresis and cellulose nitrate membrane. It is suitable for the research and experimental use of Research Institutes, colleges and universities and units engaged the research of biological engineering science, agriculture and forestry science, etc.
Feature
• Dark chamber design, no need darkroom, can be used in all-weather;
• Safety for the user;

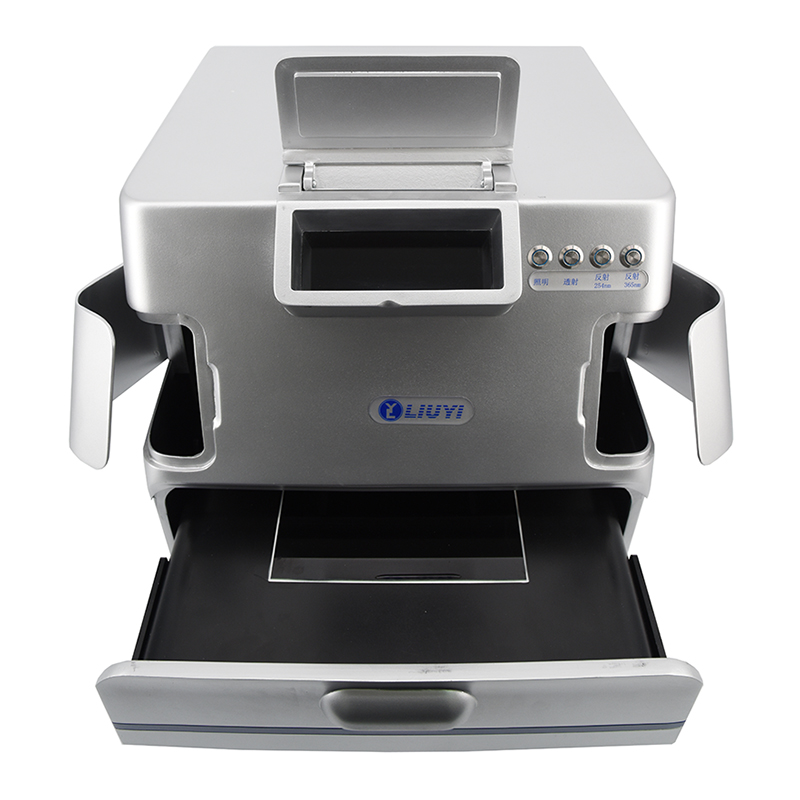

• Drawer-mode light box, convenient for use;
• With the UV transmission and visible light transmission function;
• Strong and durable;
• 3 different wavelengths of UV light available;

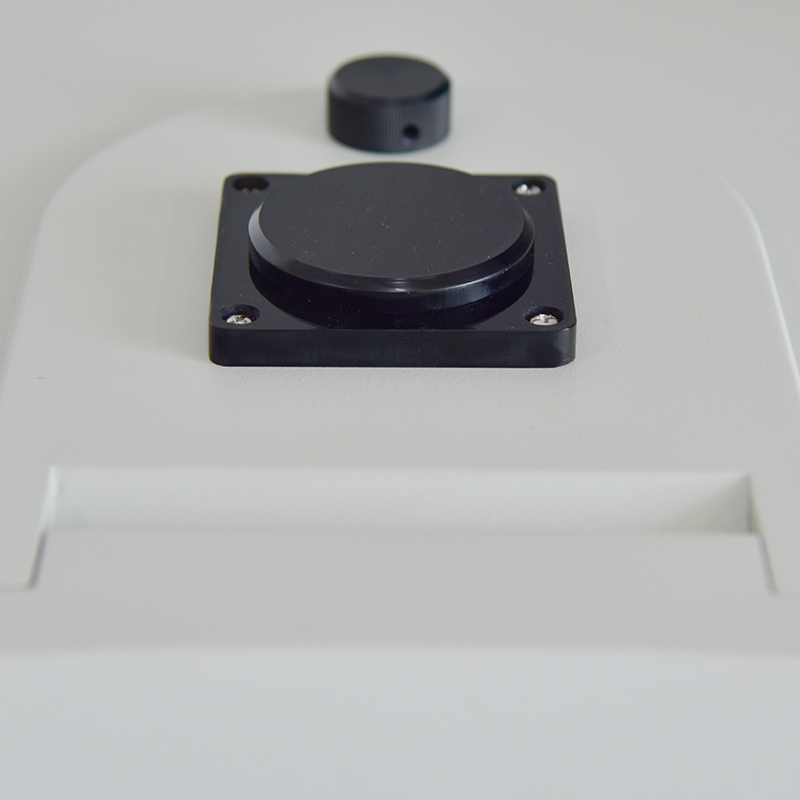

• With illumination and camera bracket inside(Camera system is optional).
