We have shared some common issues regarding to electrophoresis bands before, and we’d like to share some other abnormal phenomena of polyacrylamide gel electrophoresis in other side. We summary these issues for our customers’ reference to find out the reasons and to obtain accurate results and improve the quality of protein separation.
Gel not polymerized Possible
Reasons are:
(a) Insufficient monomer purity, requiring recrystallization.
(b) Dissolved oxygen in the gel solution inhibits gel polymerization. An effective sparging pump should be used.
(c) Ammonium persulfate is ineffective or insufficient in quantity. Freshly prepare or use another batch of ammonium persulfate with higher concentration.
The gel has already polymerized without adding the water layer.
Reasons are:
(a) Cool the gel solution before adding the catalyst to slow down the polymerization rate.
(b) Reduce the amount of TEMED or ammonium persulfate used.
(c) Speed up the operation.
Gel slides out of the electrophoresis chamber after polymerization
This is particularly prone to occur in low-concentration gels. One solution is to wrap a dialysis membrane around the bottom of the tube or use a porous polypropylene base.
Sample not detected after electrophoresis
Reasons are:
(a) Insufficient sample amount. Increase the sample amount.
(b) Staining solution properties or concentration or staining time are insufficient. Replace the staining solution and increase the concentration and staining time.
(c) The sample floated out during loading. Increase the density of the sample solution and handle with care.
(d) The separation gel concentration is too high, and the sample did not enter the gel. Adjust the gel concentration appropriately.
(e) The separation gel concentration is too low, and the sample has been electrophoresed out of the separation gel. Adjust the gel concentration and the optimal electrophoresis conditions.
(f) If the sample is RNA, it may contain proteins that form a large complex that blocks the gel pores. Thoroughly remove the protein from the RNA sample.
(g) The sample contains enzymes that hydrolyze the sample, and the sample degrades during electrophoresis. Thoroughly purify the sample.
Beijing Liuyi Biotechnology Company Ltd manufactures a range of electrophoresis products that can help to solve the issues we maybe meet in our electrophoresis experiment. The company was established in 1970. It was nation-owned and produced electric welding machine and industrial flow meter at that time. Since 1979, Beijing Liuyi Biotechnology Company Ltd starts to produce electrophoresis products. Now the company is one of the leading manufacturer of laboratory equipment and scientific instruments based in Beijing, China. Its trademark “LIUYI” is famous in China in this area.
The company’s products include a wide range of laboratory instruments, including horizontal nucleic acid electrophoresis tank, vertical protein electrophoresis tank/unit, black-box type UV analyzer, Gel Document Tracking Imaging Analyzer, and electrophoresis power supply. These products are widely used in research institutions, universities, and various industries, such as pharmaceuticals, biotechnology, and environmental monitoring.The company is ISO9001 & ISO13485 certified company and has CE certificates.

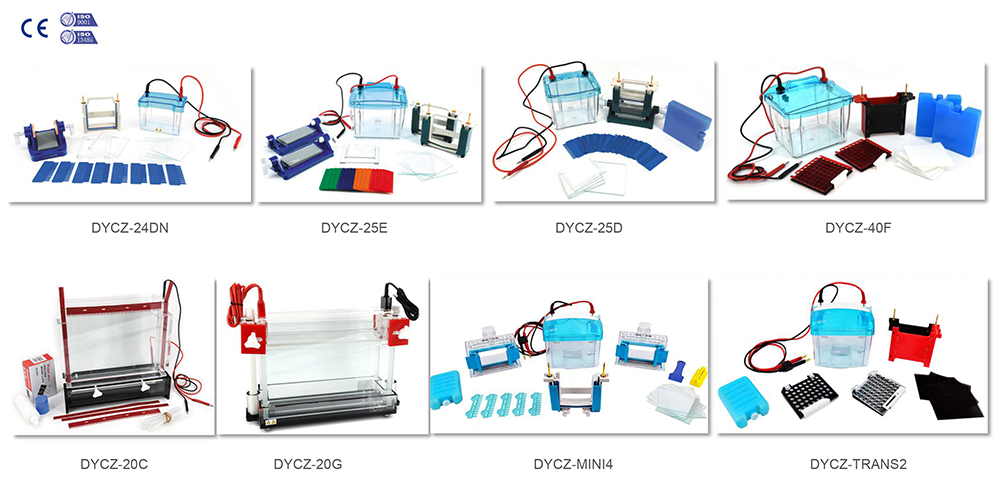

There are various kinds of vertical electrophoresis tanks for protein electrophoresis for analysis and identification of protein samples by polyacrylamide gel electrophoresis, and also for measuring samples’ molecular weight, purifying samples and preparing samples. These products are all welcomed in domestic and overseas market.

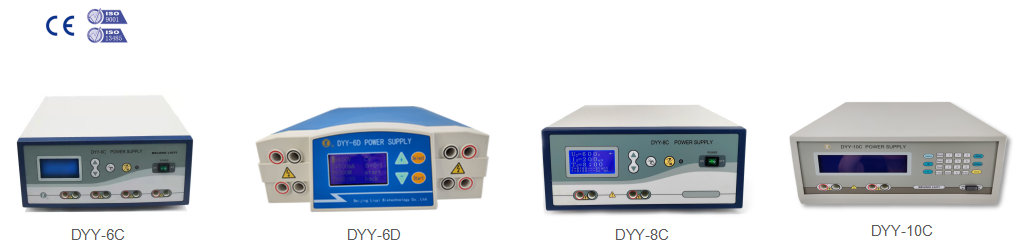

The electrophoresis power supply is an essential component of electrophoresis system, providing a steady and precise source of electrical current to drive the separation process. It typically delivers a constant voltage or constant current to the electrophoresis system, depending on the specific experimental protocol. It also allows the user to adjust the voltage or current output, as well as other parameters such as time and temperature, to optimize the separation conditions for a particular experiment.

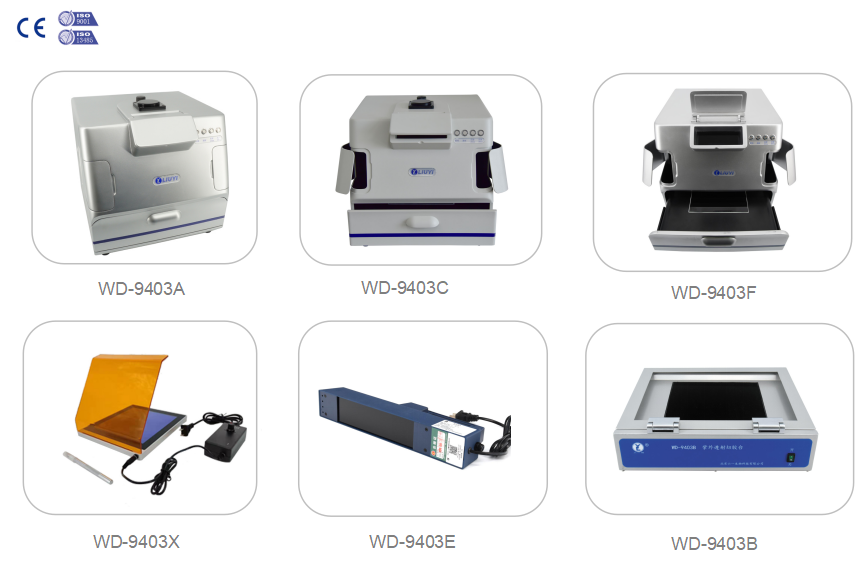

For observing the gel, you can choose a UV Transilluminator WD-9403 series manufactured by Beijing Liuyi Biotechnology. A UV transilluminator is a laboratory instrument used to visualize and analyze DNA, RNA, and protein samples. It works by illuminating the samples with UV light, which causes the samples to fluoresce and become visible. There are several models of UV transilluminator offered for you by us. WD-9403A is specially for observing protein electrophoresis, and the WD-9403F is used for observing DNA and protein electrophoresis.
These series of products can serve from casting gel to observing gel according to your experiment requirements.Let us know your requirements, both OEM, ODM and distributors are welcomed. We will try our best to offer you our products and services.
If you have any purchasing plan for our products, please don’t hesitate to contact us. You can send us message at email [email protected] or [email protected], or please call us at +86 15810650221 or add Whatsapp +86 15810650221, or Wechat: 15810650221.
Post time: May-23-2023
