Beijing Liuyi Biotechnology Co. Ltd is a professional gel electrophoresis supplier that focus in this region for more than 50 years. It is a gel electrophoresis factory with many distributors in domestic, and it has its own lab to service the customers. The products range from gel electrophoresis tanks, electrophoresis power supply, blue LED transilluminator, UV transilluminator to gel doc system. Liuyi Biotechnology is ISO 9001& ISO 13485 certified company and the products have CE certificates.”LIUYI” is its brand name that is honored as the famous trademark of Beijing.
The most effective way to separate DNA fragments in agarose gels by submarine electrophoresis. In this technique, the entire gel is submerged in the buffer. These units are available with varieties size of trays that can run upto large quantities of samples. The clear plastic construction is very helpful and easy for sample visualization. The experimenters always care about the leakage of the gels when they are casting or running the gel, and these horizontal immersed gel electrophoresis units can provide a perfect solution for this issue. These units can avoid any leakage for electrophoresis and gel casting.

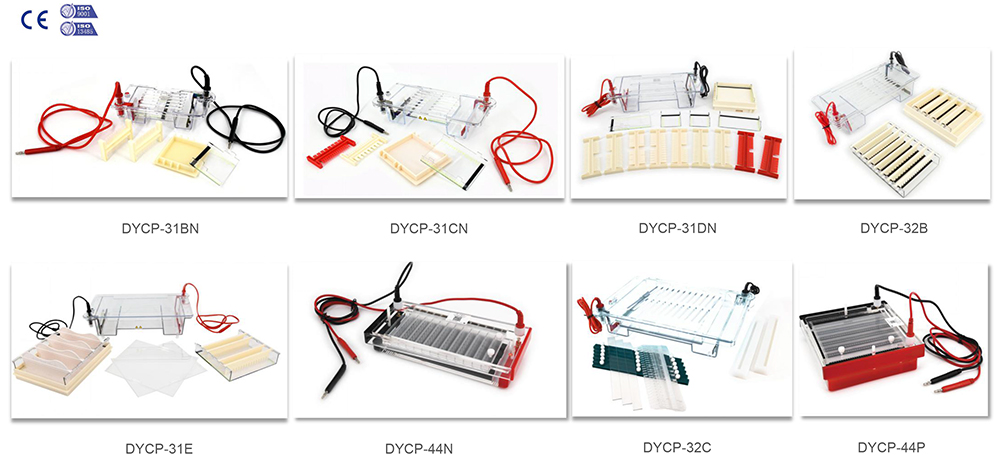

Selection Guide for Horizontal Immersed Gel Electrophoresis Unit
|
Model |
Gel size(W*L) mm |
Buffer Volume ml |
Comb Rows |
No.of Samples |
| DYCP-31BN | 60*60 | 120 | 1~2 | 8~11 |
| DYCP-31CN | 70*100 | 260 | 1~4 | 8~15 |
| DYCP-31DN | 120*120, 60*120, 120*60, 60*60 | 650 | 1~4 | 2~72 |
| DYCP-31E | 160*200, 160*150 | 1000 | 1~6 | 17~204 |
| DYCP-32B | 130*200, 130*150 | 800 | 1~8 | 4~208 |
| DYCP-32C | 250*250, 120*250, 60*250 | 1600 | 1~4 | 26~204 |
| DYCP-44N | 100*200 | 2000 | 1~12 | 8~96 |
| DYCP-44P | 140*170 | 2000 | 1~6 | 17~198 |

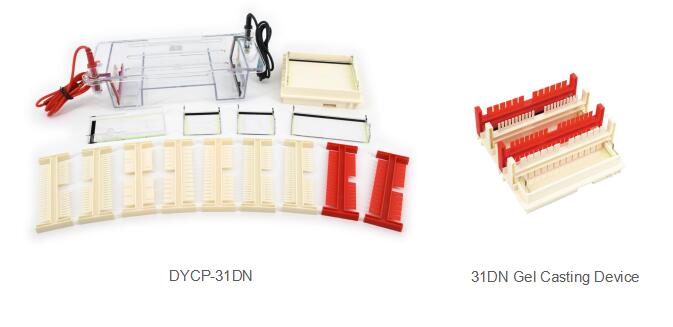

Among all of these horizontal immersed gel electrophoresis, one of the tank model DYCP-31DN horizontal gel electrophoresis is a very classical and amazing design product. Gel trays are available 60×60mm,60×120mm, 120×60mm and 120×120mm and combs ranging from 2-100 samples. The designer is very clever to make this casting device. A casting device can cast four different size of gels, or cast two same size gels at same time. It is a really smart design.
Except this classical model, Beijing Liuyi Biotechnology Co. Ltd offers all different type of models for different applications like mini size, middle size, max size electrophoresis tanks, as well as customized electrophoresis.
Let us know your requirements, both OEM and distributors are welcomed.
If you have any purchasing plan for our products, please don’t hesitate to contact us. You can send us message at email [email protected] or [email protected], or please call us at +86 15810650221 or add Whatsapp +86 15810650221, or Wechat: 15810650221.
Post time: Feb-08-2023
