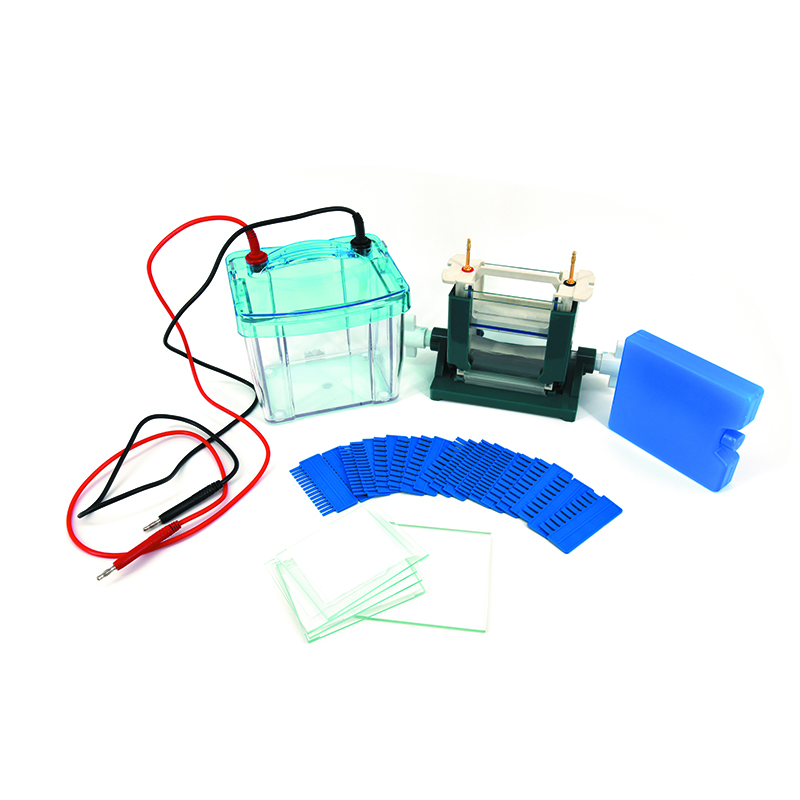

Modular Dual Vertical System DYCZ – 25D

Short Description:

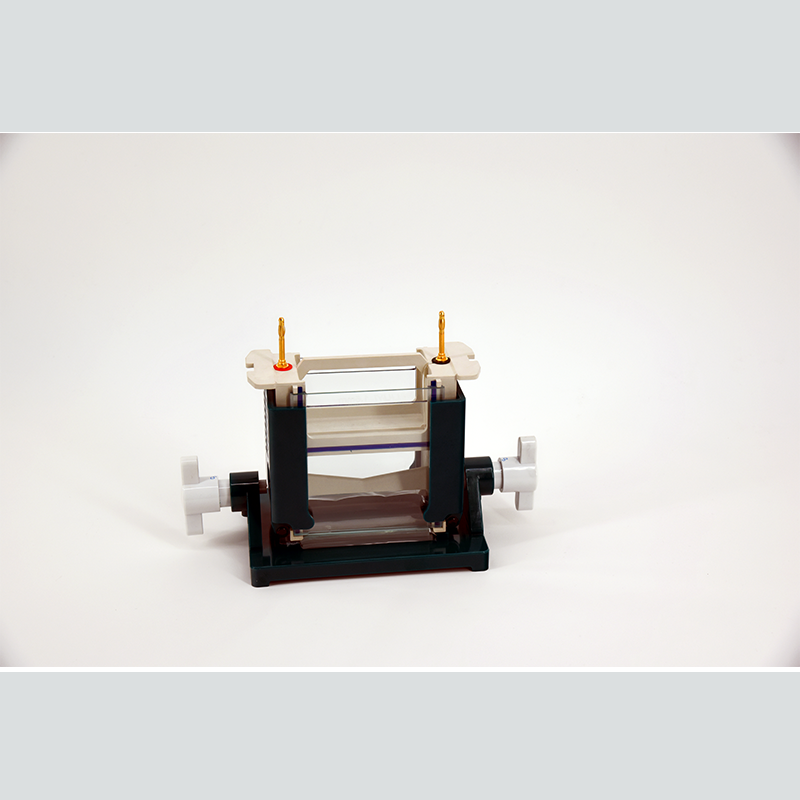

DYCZ 25D is the update version of DYCZ – 24DN. It’s gel casting chamber is installed in the main body of electrophoresis apparatus directly that is able to cast and run the gel at the same place. It can place two different sizes of gel. Its injection molded constriction with high strong poly carbonate materials makes it solid and durable. It’s easy to observe gel through high transparent tank. This system has heat dissipation design to better avoid heating during running.

Gel Size (LxW): 75×83mm 95×83mm

Comb: 10 wells and 15 wells

Comb Thickness: 1.0mm and 1.5mm

Number of Samples: 40-60

Buffer Volume: 1350 ml

Send email to us

Product Detail

Product Tags

Specification

Dimension (LxWxH)	175×163×165mm
Gel Size (LxW)	75×83mm 95×83mm
Comb	10 wells and 15 wells
Comb Thickness	1.0mm and 1.5mm
Number of Samples	40-60
Buffer Volume	1350 ml
Weight	1.0kg

Application

For SDS – PAGE, Protein Electrophoresis.

Feature

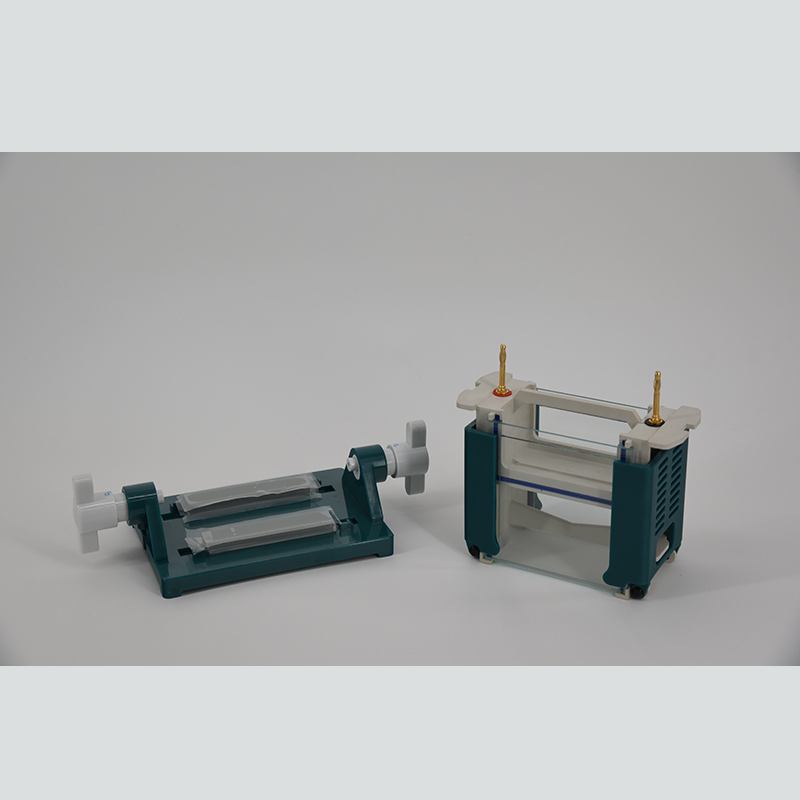

• Casting gel in original position: Install gel casting chamber in the main body of electrophoresis apparatus directly, able to cast and run the gel at the same place;

• Strong compatibility: Two different sizes of gel can be placed, able to separate samples that mini size gel can’t do and improve samples’ resolution;

•Simplified high-end product: Simplified design for operation requirements and clamping installation;

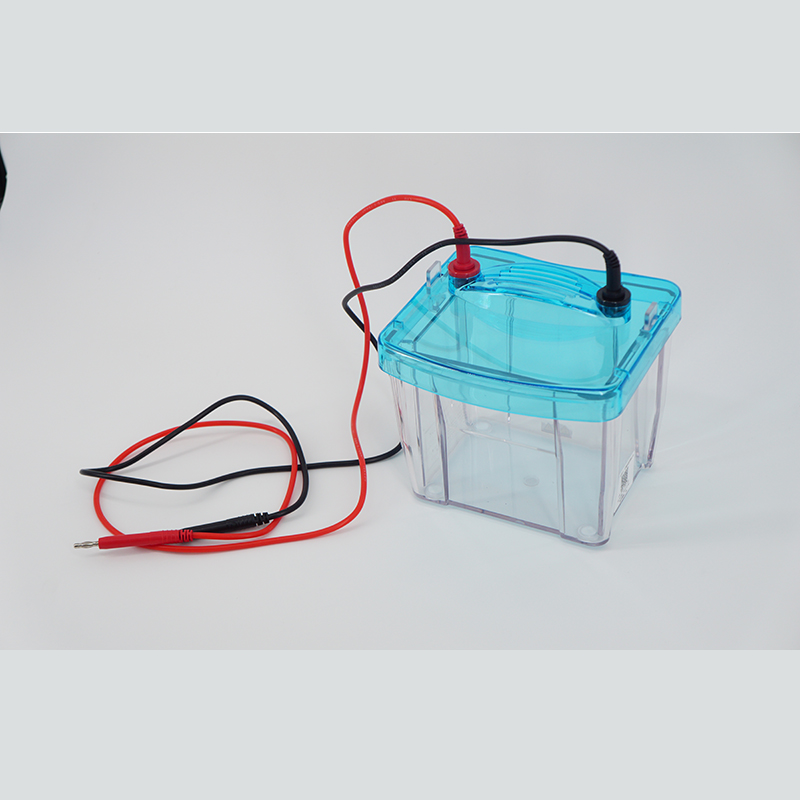

• High-quality materials with skilled technique: Casting mold with high strength PC material, which is solid and durable.High transparent tank, easy for observation;

• Heat dissipation design: Sufficient buffer can absorb heat, the V-shape protective strip for positive erectrode ensures platinum wire and buffer have good contact to avoid heating. 1cm space kept in the bottom of tank can be placed magnetic rod to stir. With vents on the top lid, release the heat and water mist during running.
