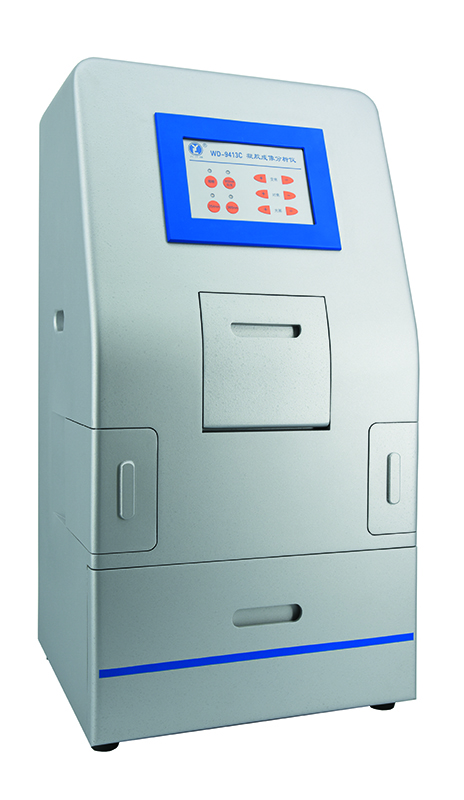

Gel Imaging & Analysis System WD-9413C
Specification
| Dimension | 388×375×753 mm |
| Transmission UV Wavelength | 302nm |
| Reflection UV Wavelength | 254nm and 365nm |
| UV Light Transmission Area | 252×252mm |
| Visible Light Transmission Area | 260×175mm |
Application
Apply to observe, take photos and analyse testing results of nucleic acid and protein electrophoresis;
Feature
• Dark chamber design; no need dark room; can be used in all-weather;

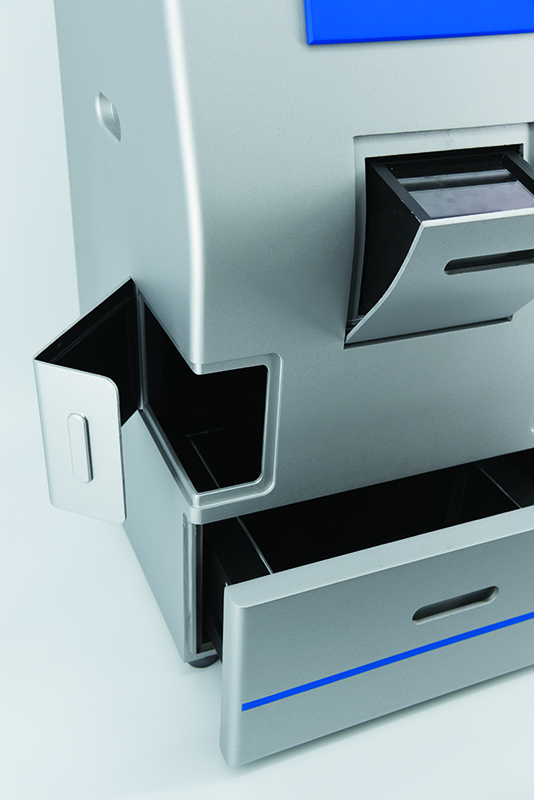

• Drawer-mode light box, convenient to use and avoid contamination;
• Real time preview and autofocus function;
• UV filter: EB special super multi-layer coating filter(M52×0.75);
• Compatible with various image formats: tif ,jpg, bmp, gif;
• 6 x optical automatic zoom lens; remote control electric zoom, intelligent control;
• 1.3 million high resolution megapixel camera;
• Special camera software and analysis software work together, can observe, take photos and analyse at same time. Connect with PC through USB interface, no touching with any internal computer hardware, convenient to maintain and repair;

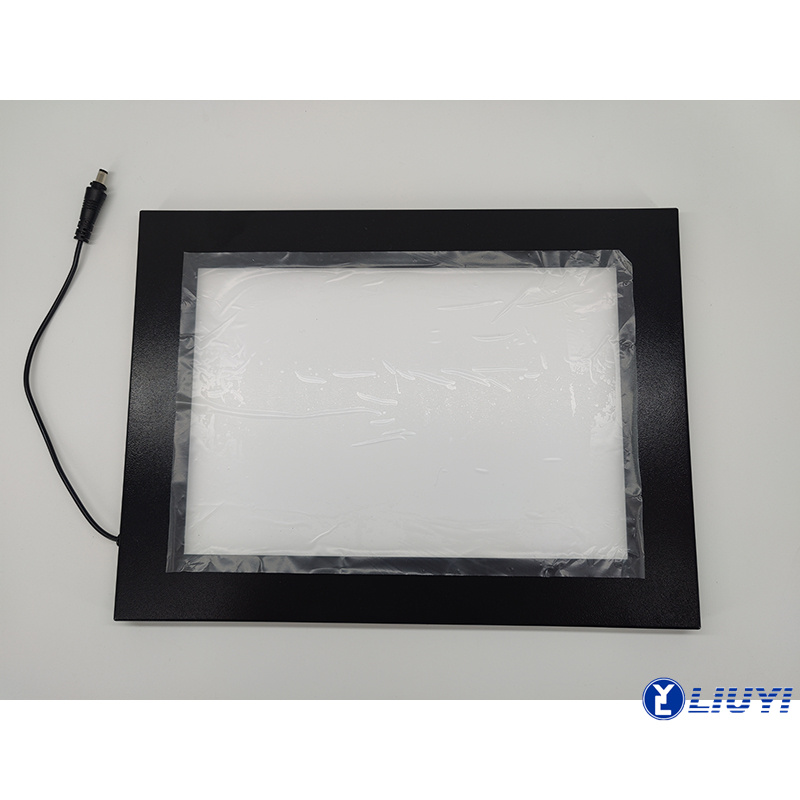

• UV/white light conversion screen;
• With the function of hard integral;
• Both Computer and pannel can control UV lamp, focusing and aperture size.

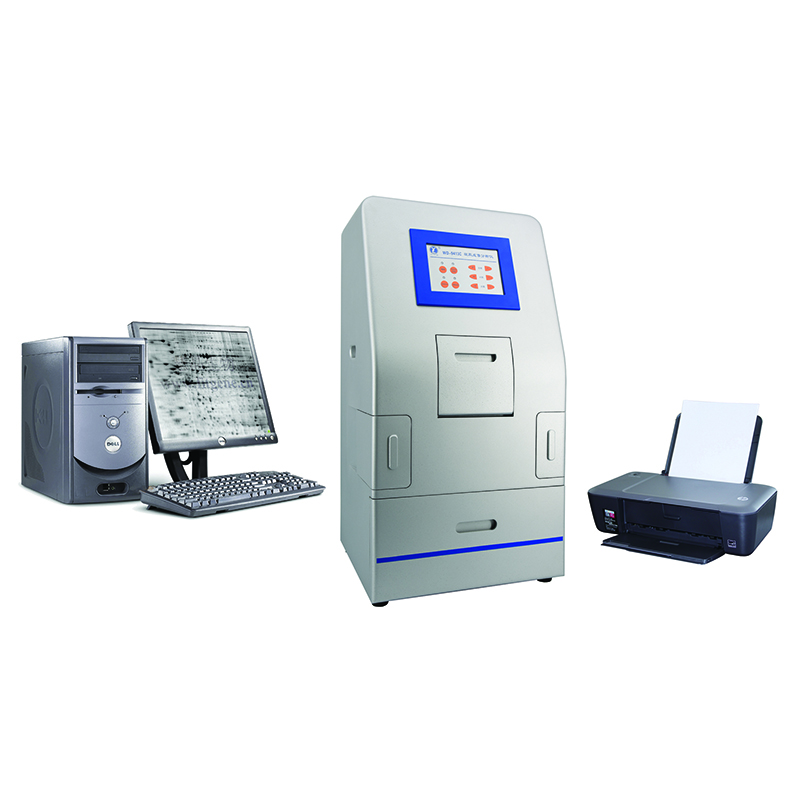

System Configuration
• High performance black and white cameras;
• Imported professional analysis software;
• High configuration computer;
• High resolution ink-jet printer.
Technical Specification
• Camera dynamic range:62dB;
• Camera pixel size: 5.2μm(H)×5.2μm(V);
• Camera exposure time:1-2000ms.;
• The interface: USB2.0;
• Professional analysis can be carried out to the result of 1 d, spot hybridization and colony count etc.
Powerful analysis software
1. The image processing function;
2. 1D analysis function;
3. Counting clone technology index;
4. Colony and spot hybridization;
5. Data results with MS Excel seamless connection;
7. Software can be used for Win98/Me/2000/Windows7/Windows10.
