Electrophoresis Power Supply DYY-10C

Short Description:

DYY-10C fits for general protein, DNA, RNA electrophoresis. With micro-computer processor intelligent control, it’s able to adjust parameters in real time under the working condition. The LCD displays voltage, electric current, timing time. It has function of stand, timing, V-hr, step-by-step operation. With automatic memory function, it is able to store the operation parameters. It has protection and warning function for unloaded, overload, sudden-load change.


  • Output Voltage: 10-3000V
  • Output Current: 3-300mA
  • Output Power: 5-200W
  • Output Terminal: 2 pairs in parallel
  • Product Detail

    Product Tags

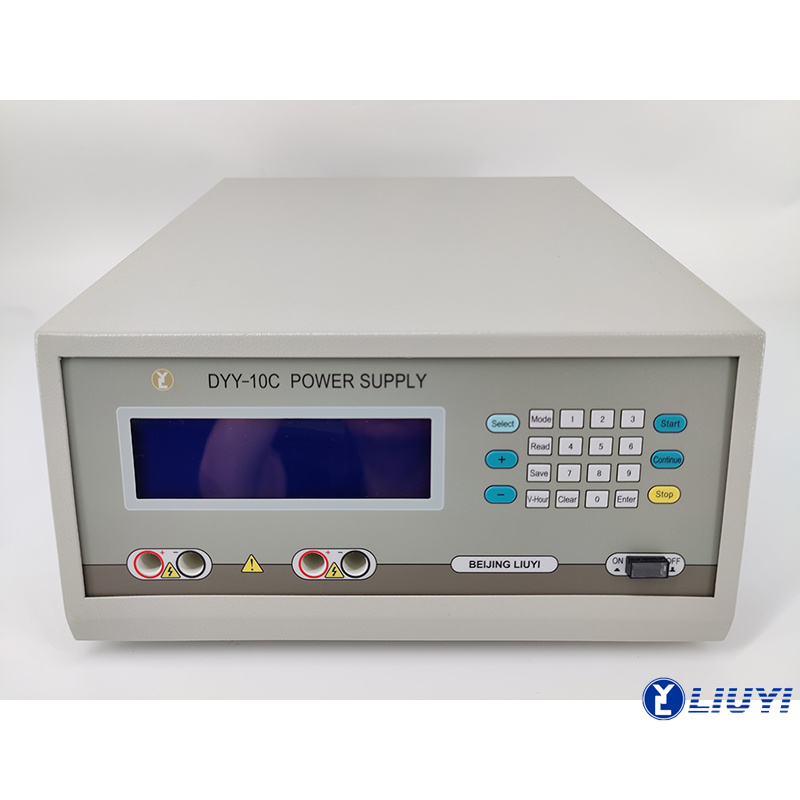

    Electrophoresis-Power-Supply-DYY-10C-1

    Specification

    Dimension (LxWxH)

    303 x 364 x 137mm

    Output Voltage

    10-3000V

    Output Current

    3-300mA

    Output Power

    5-200W

    Output Terminal

    2 pairs in parallel

    Weight

    7.5kg

    Electrophoresis-Power-Supply-DYY-10C-2
    Electrophoresis-Power-Supply-DYY-10C-3
    Electrophoresis-Power-Supply-DYY-10C-4
    Electrophoresis-Power-Supply-DYY-10C-6
    Electrophoresis-Power-Supply-DYY-10C-8
    Electrophoresis-Power-Supply-DYY-10C-7
    Electrophoresis-Power-Supply-DYY-10C-5

    Application

    Suitable for series of electrophoresis, including DNA sequencing analysis, isoelectric focusing electrophoresis etc.

    Feature

    • Micro-computer processor intelligent control;

    • Able to adjust parameters in real time under the working condition;

    • Large LCD screen, LCD displays voltage, electric current, timing time;

    • With stand, timing, V-hr, step-by-step operation function;

    • With automatic memory function, able to store the operation parameters (9 groups with 9 programs can be stored);

    • With constant voltage, constant current, constant power and automatically switch program according to the pre-set parameters for different needs;

    • Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating;

    • Won the second prize of Beijing Science and Technology Achievement Award.
