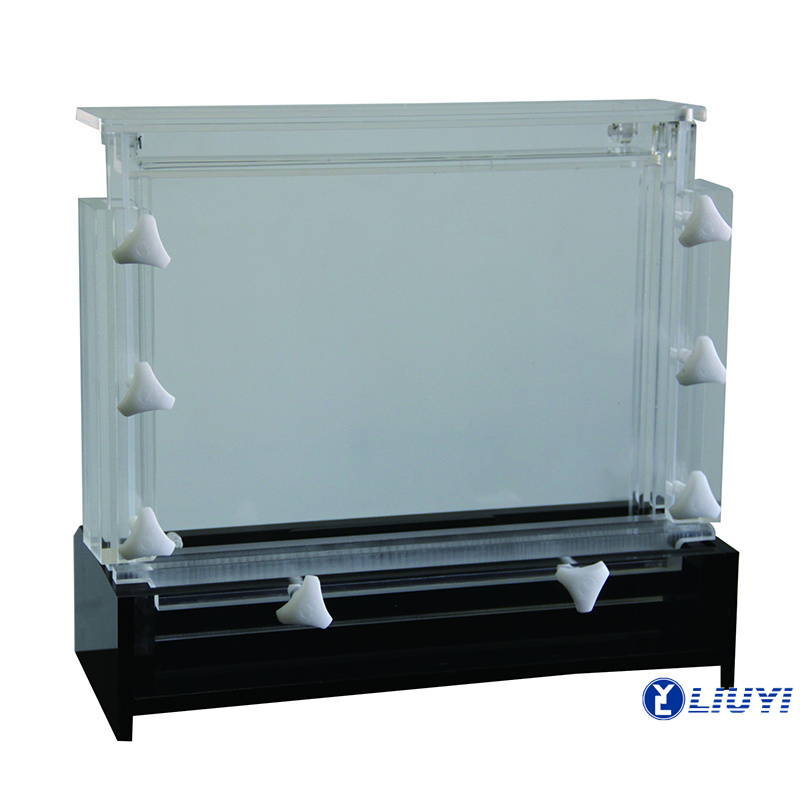

DNA Sequencing Electrophoresis Cell DYCZ-20C
Specification
| Dimension (LxWxH) | 410×210×430 mm |
| Gel Size (LxW) | 300×340mm |

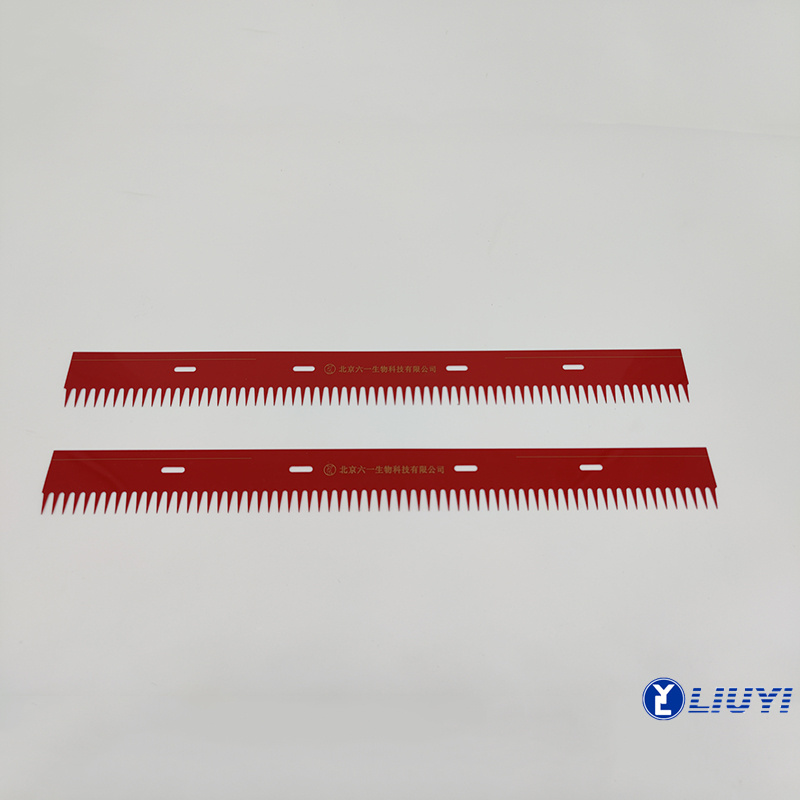

| Comb | 68 Wells(shark teeth)(Standard) 100 wells (shark teeth)(Option) |
| Comb Thickness | 0.4mm |
| Number of Samples | 132 |
| Buffer Volume | 1500 ml |
| Weight | 12.0 kg |
Description

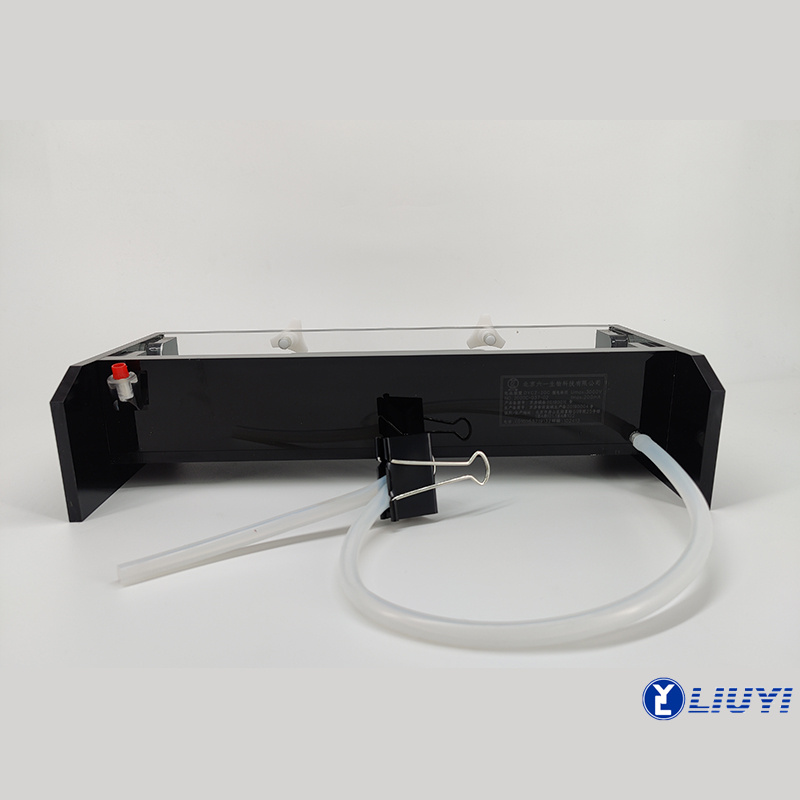

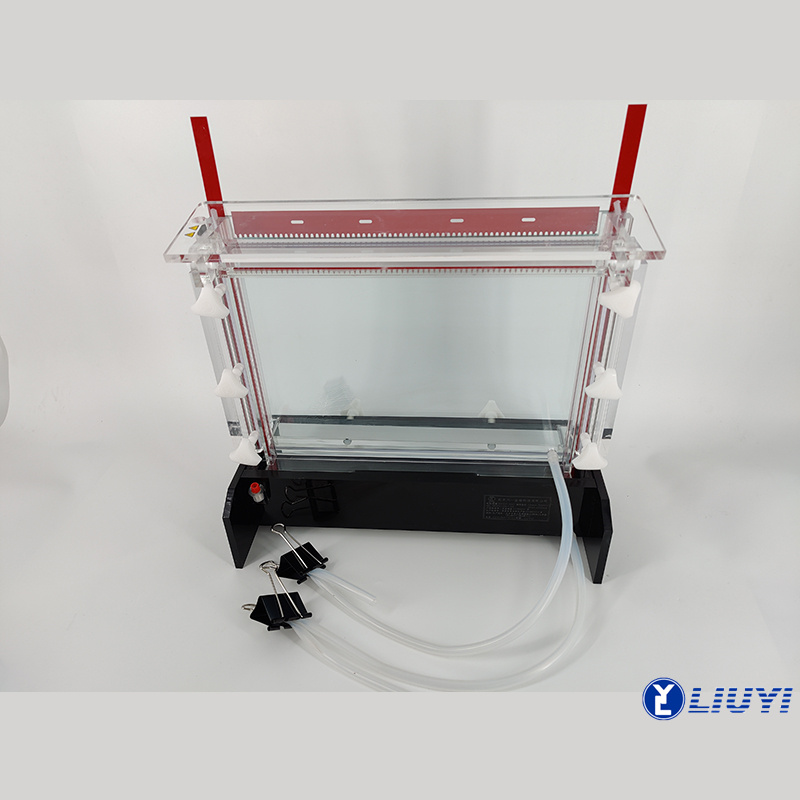

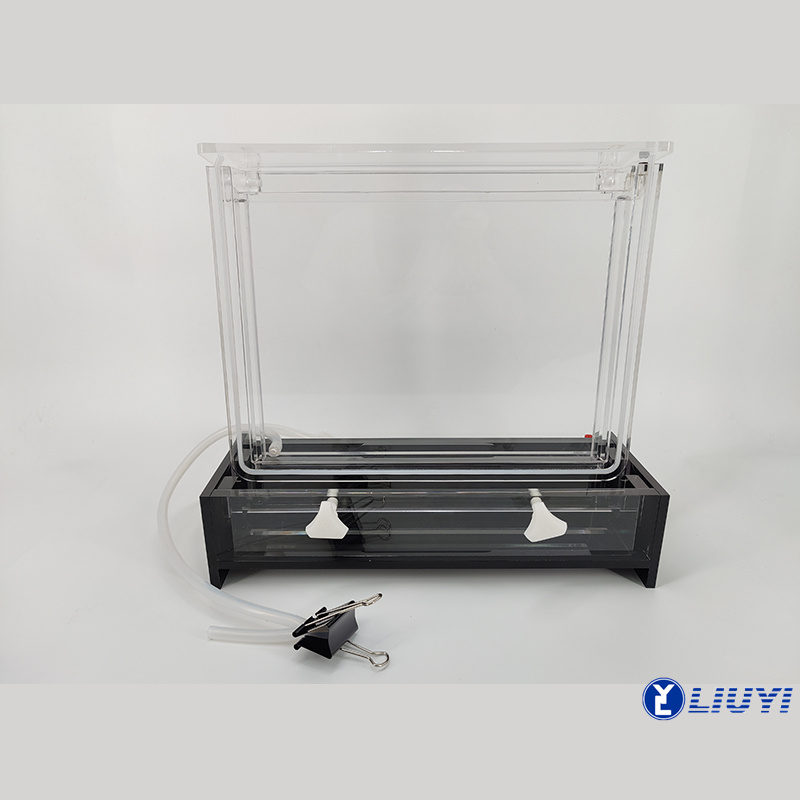

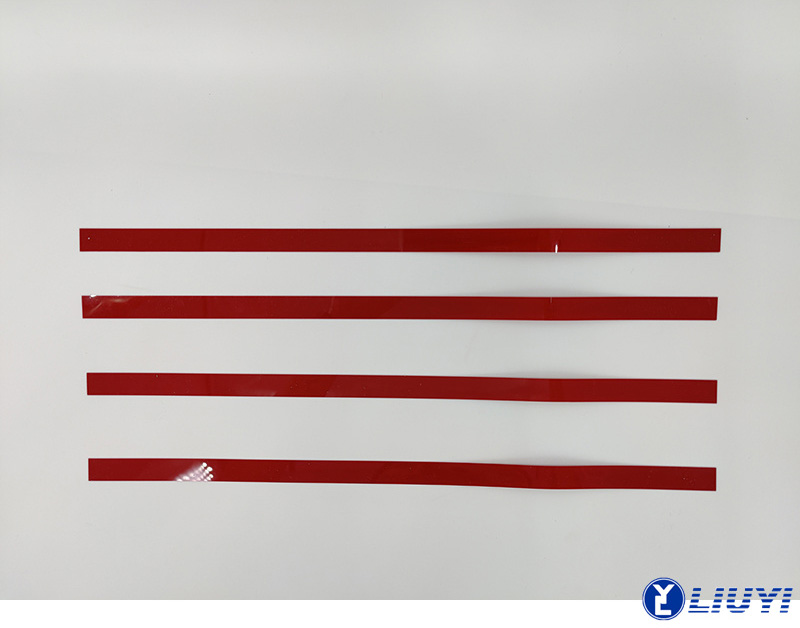

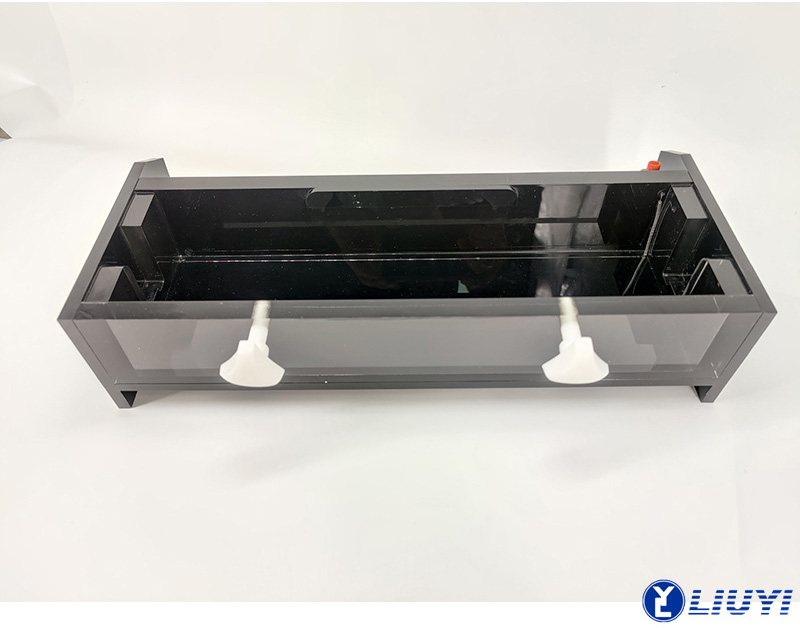

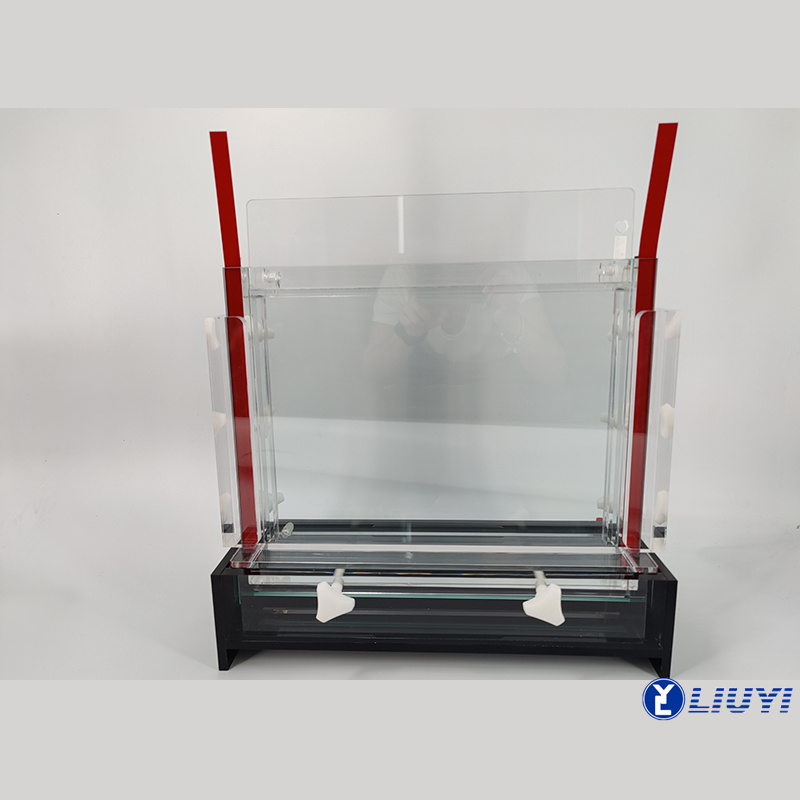

The DYCZ-20C consists Main tank plate, Lower tank, Combs, “U”-shape fixing device, “T”-shape spacer block, Glass plate, Gel bottle, Sealing clip, Silica rubber strip, Sealing strip, Lead.The main tank plate is transparent, spliced, exquisite, durable, no chemical pollution; chemical-resistant, pressure-resistant.“U”-shape fixing device for gel room facilitate rapid assembly, the “U”-shape fixing device clamps the sides over the gel room, and each “U”-shape fixing device exerts an even pressure over the entire length of the gel room, resulting in a tight seal when you tighten the screws. This prevents damage to the gel room (glass plate) or leakage that can result from uneven pressure. Electrodes are made by pure platinum (the purity quotient of the noble metal ≥99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature, the function of electric conduction is very good.
Application
For DNA sequencing analysis and DNA fingerprinting analysis, differential display and SSCP research.
Feature
• Easy to cast the gel;
• Stable performance;
• Unique design of heat dissipation, keep temperature balance;
• Distinctive outlet for buffer solution;
• Easy to make gel with the gel filling device；
• Neat and clear electrophoresis bands;
• Clear signs on the glass to ensure correct operation.
